High-performance LC to LC duplex OM4 multimode fiber patch cable designed for high-speed data center and enterprise network applications.

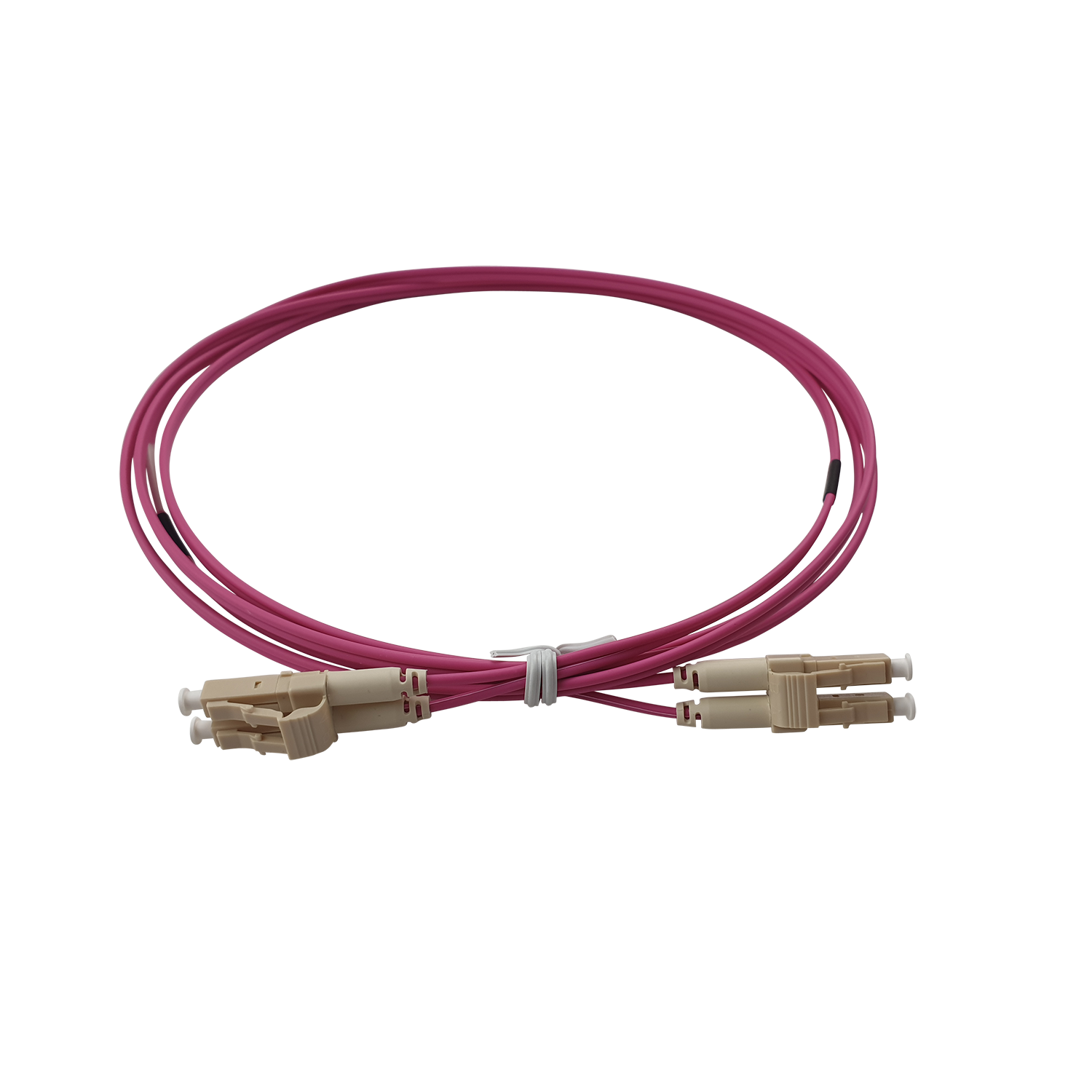

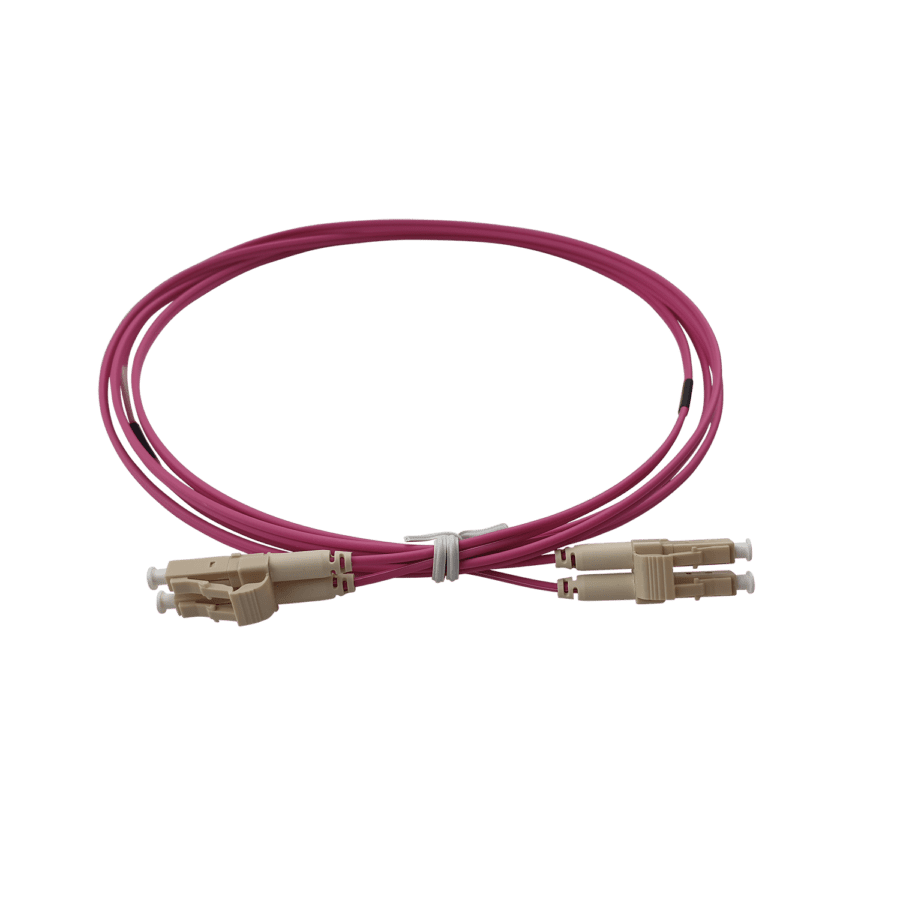

The Data General DG-SPP-LC-LC-OM4 is a duplex multimode fiber patch cable engineered for high-speed optical connectivity in data centers, enterprise networks, and structured cabling systems.
Manufactured using OM4 multimode fiber, this patch cord supports high-bandwidth applications such as 10G, 25G, 40G and 100G Ethernet, making it ideal for modern switching and server environments. The cable is terminated with LC connectors on both ends, ensuring low insertion loss, high return loss, and excellent signal integrity.
The OM4 fiber core is optimized for 850 nm VCSEL-based transceivers, enabling extended reach compared to OM3 fiber while maintaining backward compatibility. Its duplex configuration supports bi-directional communication and is commonly used for switch-to-switch, switch-to-server, and patch panel interconnections.
The DG-SPP-LC-LC-OM4 features a durable violet outer jacket, compliant with OM4 color coding standards, and a compact 2.0 mm cable diameter, ensuring easy installation, improved airflow, and efficient cable management in high-density environments.
• LC to LC duplex multimode fiber patch cable
• OM4 multimode fiber optimized for high-speed applications
• Supports 10G / 25G / 40G / 100G Ethernet
• Low insertion loss and high return loss
• Optimized for 850 nm VCSEL transceivers
• Duplex configuration for bi-directional transmission
• 2.0 mm cable diameter for high-density installations
• Standard violet OM4 jacket
• Ideal for data centers and enterprise networks
• RoHS compliant
General
• Cable type: Fiber Optic Patch Cord
• Fiber category: OM4 Multimode
• Connector A: LC
• Connector B: LC
• Polarity: Duplex
• Cable diameter: 2.0 mm
• Jacket color: Violet (OM4 standard)
Optical Performance
• Core / cladding diameter: 50 / 125 µm
• Operating wavelength: 850 nm / 1300 nm
• Insertion loss: ≤ 0.3 dB (typ.)
• Return loss: ≥ 30 dB
Bandwidth & Distance
• 10G Ethernet: up to 400 m
• 40G / 100G Ethernet: up to 150 m
• Fully backward compatible with OM3 systems
Mechanical & Environmental
• Operating temperature: –20 °C to +70 °C
• Storage temperature: –40 °C to +85 °C
• Minimum bend radius: 7.5 × cable diameter
• Jacket material: LSZH / PVC (depending on configuration)
Standards & Compliance
• IEC 61754-20 (LC connector)
• ISO/IEC 11801
• TIA/EIA-568
• RoHS compliant
