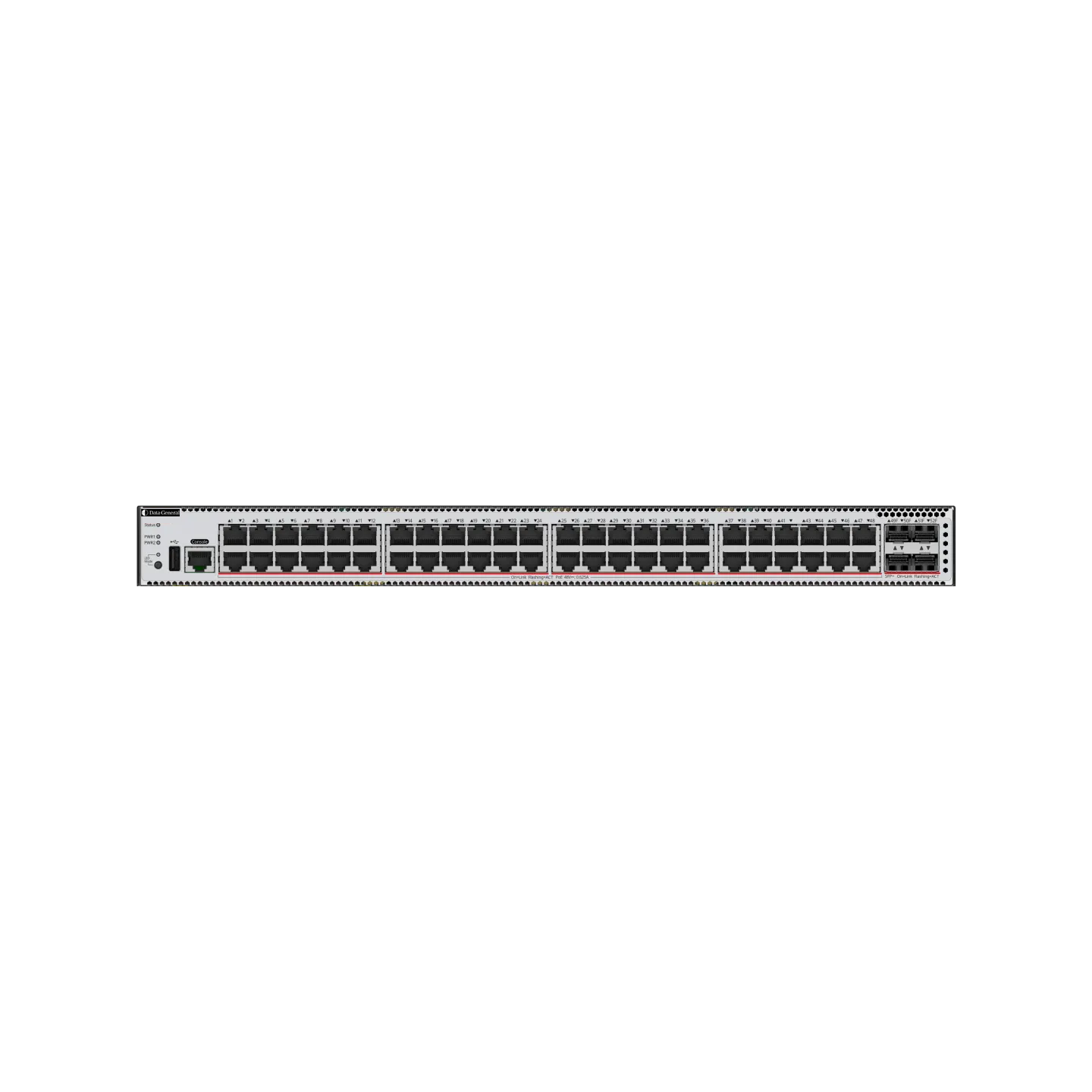

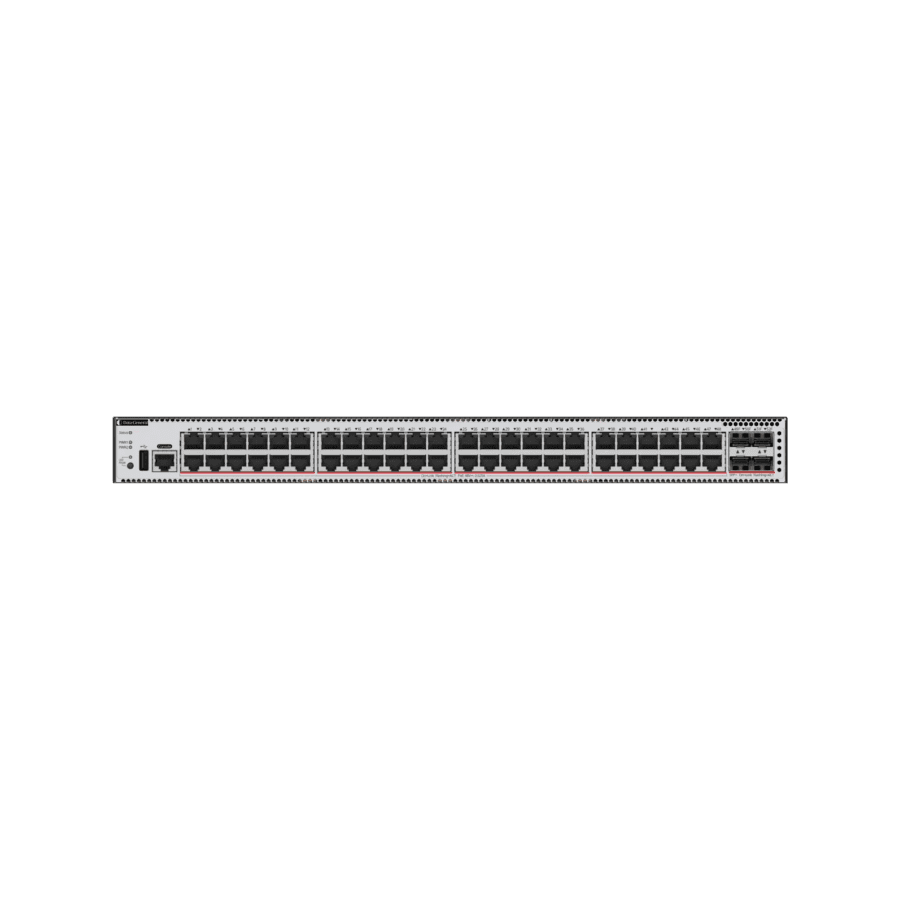

DG-S5360-48GP4X-740W - Layer 3 10G 48 Ports PoE Switch 4 SFP+

Enterprise Layer 3 PoE switch with 48 Gigabit PoE ports, 4 × 10G SFP+ uplinks, and a 740 W PoE budget. Dual hot-swappable DG-PA600-I-F power supplies ensure high availability for business-critical networks.

DG-S5360-48GP4X-740W

DG-S5360-48GP4X-740W Layer 3 PoE Switch – Enterprise Performance with Redundant Power and 10G Uplinks

The DG-S5360-48GP4X-740W is an enterprise-grade Layer 3 Gigabit PoE switch from Data General, designed for professional deployments that require high reliability, centralized PoE power, and high-speed uplinks, without oversizing the power budget. It is ideally positioned for medium-to-large projects where performance, resilience, and scalability are essential.

This model is equipped with 48 Gigabit Ethernet PoE ports and 4 × 10G SFP+ uplink ports, providing high-density access connectivity and fast aggregation to the network core. With a 740 W PoE power budget, the DG-S5360-48GP4X-740W can reliably power a large number of WiFi 6 / WiFi 6E access points, IP cameras, VoIP phones, access control systems, and IoT devices, making it a balanced and efficient choice for enterprise networks.

A key feature of this switch is its dual redundant, hot-swappable power supply design, operating with two DG-PA600-I-F power supply units (equivalent to RG-PA600-I-F). This configuration ensures power redundancy and uninterrupted operation, allowing maintenance or power module replacement without network downtime—an essential requirement in business-critical environments.

Thanks to its Layer 3 capabilities, the DG-S5360-48GP4X-740W supports advanced routing, VLAN segmentation, and traffic management directly at the switch, improving network efficiency and simplifying overall architecture. The 10G SFP+ uplinks ensure high-throughput, low-latency connectivity, preventing bottlenecks in networks with heavy wireless traffic and data-intensive applications.

The DG-S5360-48GP4X-740W is ideally suited for hotels, hospitals, university campuses, large offices, industrial facilities, retail chains, and enterprise WiFi deployments, where redundancy, performance, and controlled PoE capacity are required. It offers the same enterprise feature set as higher-power models, with a more optimized PoE output for projects that do not require maximum wattage.

By combining Layer 3 intelligence, redundant hot-swappable power supplies, strong PoE capacity, and 10G uplinks, the DG-S5360-48GP4X-740W delivers a robust, scalable, and future-ready switching solution for professional and enterprise networks.

Multiple port types with full gigabit access, flexible 10GE uplink, and PoE/PoE+ for enhanced speed and performance.
Nano Coating Protection for Enhanced Durability.
Hot-pluggable Dual Power Modules for Higher Reliability.
Stronger Interference Resistance with Wide Temperature Range & 10kV Surge Protection.
48 × 10/100/1000BASE-T ports, supporting PoE/PoE+.
4 x 10GE SFP+ ports.
Nano Coating Protection for Enhanced Durability.
Hot-pluggable Dual Power Modules for Higher Reliability.
Stronger Interference Resistance with Wide Temperature Range & 10kV Surge Protection.

Hardware Specifications
Port specifications	DG-S5360-48GP4X-740W
Fixed service port	48 x 10/100/1000BASE-T ports, supporting PoE/PoE+
Fixed service port	4 x 1GE/2.5GE/10GE SFP+ ports
Module slot	2 x power module slots
Power module	PA600IP-F
	PA1000IP-F
	(supporting mixed insertion)
Fixed management port	1 x RJ45 console port
USB	1 x USB 2.0 port

System specifications
System packet forwarding rate*1	158 Mpps
System switching capacity*2	211 Gbps
CPU	Dual-core CPU, each core with the clock speed of 1.0 GHz
Real-time clock (RTC)	Supported
BootROM	16 MB (storing boot software for 1+1 boot redundancy)
Flash memory	512 MB
Memory	1GB DDR4
Switch buffer	4 MB
Number of MAC addresses	16000
ARP table size	4000
ND table size	4000
Number of IPv4 unicast routes	6000
Number of IPv4 multicast routes	1000
Number of IPv6 unicast routes	2000
Number of IPv6 multicast routes	750
Number of ACEs	Ingress: 1,750
Number of ACEs	Egress: 800
Number of IGMP groups	1000
Number of MLD groups	750
Number of VSU members	8
*1 means the system’s packet forwarding rate.
*2 means the system’s switching capacity.

Power supply and consumption
Power supply	2 x pluggable power modules
Power module redundancy	Only when the PoE load of the whole device is less than PoE output power of single power supply and dual power supplies are used, redundancy is supported.
Power input	DG-PA600I-P-F (AC input):
	· Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz
	· Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
	· Maximum input current: 8 A
	DG-PA1000I-P-F (AC input 1):
	· Rated input voltage: 100 V AC to 130 V AC, 50/60 Hz
	· Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz
	· Maximum input current: 12 A
	DG-PA1000I-P-F (AC input 2):
	Rated input voltage: 200 V AC to 240 V AC, 50/60 Hz
	Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz
	Maximum input current: 8 A
Maximum output power	DG-PA600I-P-F: 600 W
	DG-PA1000I-P-F:
	100 V AC to 130 V AC: 930 W
	200 V AC to 240 V AC: 1000 W
	Note: When the ambient temperature is higher than 55°C (131°F), the maximum output power is reduced by 50%.
PoE port	Ports 1 to 48 support PoE/PoE+ (IEEE802.3af/at) power supply
PoE power cable pairs	Mode A (1-2, 3-6 pairs)
PoE output power	Each PoE port provides up to 30 W of power.
	The maximum power depends on the configured power supply.
	1 x DG-PA600I-P-F: 370 W
	2 x DG-PA600I-P-F: 740 W;
	1 x DG-PA1000I-P-F: 740 W;
	2 x DG-PA1000I-P-F: 1480 W;
	a maximum output of 1440 W over 48 ports (30 W x 48)
	Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.
Maximum power consumption	45 W (without PoE load)
Maximum power consumption	1485 W (full PoE load)
Energy saving	Supported

Dimensions and weight
Unit dimensions (W x D x H)	442mm x 420 mm x 43.6 mm (17.40 in. x 16.53 in. x 1.72 in.)
Rack height	1 RU
Unit weight	4.9 kg (10.80 lbs)
Mounting	Mounting on a workbench or in a rack (cabinet)

Environment and reliability
Temperature	Operating temperature: -40°C to +65°C (-40°F to +149°F) at an altitude range of 0 m to 1,800 m (0 ft. to 5,905.51 ft.)
	Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
	When three or four 80-km long-reach optical transceivers are configured, the operating temperature range is –40°C to +50°C (–40°F to +122°F).
	Storage temperature: –40°C to +70°C (–40°F to +158°F)

Humidity	Operating humidity: 10% to 90% RH (non-condensing)
Humidity	Storage humidity: 5% to 95% RH (non-condensing)
Altitude	Operating altitude: -500 m to +5,000 m (-1640.42 ft. to +16,404.20 ft.)
Altitude	Storage altitude: -500 m to +5,000 m (-1640.42 ft. to +16,404.20 ft.)
Mean time between failure (MTBF)	200,253 hours (about 22 years)
Fan
Heat dissipation
Acoustic noise	SPL at ambient temperature of 27°C (80.6°F): 36 dB (30% PoE load, 2 DG-PA1000I-P-F power modules, adjusted fan speed)
Power module hot swapping	Supported
USB hot swapping	Supported
Cable hot swapping	Supported by all ports
Fan monitoring	PID-based multi-level speed adjustment
	Fan speed control (manual configuration not supported)
	Fan failure alarming
Temperature monitoring	Supported
ESD	ESD contact/air discharge: 6 kV/8 kV
ESD	ESD susceptibility contact/air discharge: 8 kV/15 kV
Surge protection	Service port: common mode 10 kV
Surge protection	Power port: common mode 6 kV, differential mode 6 kV

Certifications and regulatory compliance	DG-S5360-48GP4X-1440W
Safety regulation	IEC 62368-1
EMC regulation	EN 300386, EN 55032 ClassA, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
RoHS	European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863

Software Specifications

Feature	Description
Ethernet switching	Jumbo frame (maximum length: 9,216 bytes)
	IEEE 802.3az EEE
	IEEE 802.1Q (4,000 VLANs)
	Voice VLAN
	Super VLAN and private VLAN
	MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN
	GVRP
	Basic QinQ
	Selective QinQ
	STP, RSTP, and MSTP
	ERPS (G.8032)
	LLDP/LLDP-MED
IP service	ARP
	DHCP client, DHCP relay, and DHCP server
	DHCP snooping
	DNS
	DHCPv6 client, DHCPv6 relay, and DHCPv6 server
	DHCPv6 snooping
	Neighbor Discovery (ND) and ND snooping
IP routing	Static routing
	RIP and RIPng
	OSPFv2 and OSPFv3
	BGP4 and BGP4+
	IPv4 and IPv6 VRF
	IPv4 and IPv6 PBR
Multicast	IGMP v1/v2/v3, and IGMP proxy
	IGMP v1/v2 snooping
	PIM-DM, PIM-SM, and PIM-SSM
	MSDP
	MLD v1/v2
	MLD snooping v1/v2
	PIM-SMv6 and PIM-SSM v6
ACL and QoS	Standard IP ACLs
	Extended IP ACLs
	Extended MAC ACLs
	Time-based ACLs
	Expert-level ACLs
	ACL80
	IPv6 ACL
	ACL redirection
	Traffic rate limiting on an interface
	Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
	Congestion avoidance: tail drop
	802.1p/DSCP/ToS traffic classification
	Eight priority queues per interface
Security	Multiple AAA modes
	RADIUS and TACACS+
	Interface-based and MAC address-based 802.1x authentication
	Web authentication
	HTTPS
	SSHv1 and SSHv2
	Global IP-MAC binding
	Port isolation and port security
	IP source guard
	SAVI
	CPP and NFPP
Reliability	REUP, RLDP, DLDP
	IPv4 VRRP v2/v3 and IPv6 VRRP
	BFD
	Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)
	Dual-boot redundancy
	Fan speed adjustment
	Fan fault alarm
Device virtualization	Virtual Switching Unit (VSU)
NMS and maintenance	SPAN, RSPAN
	sFlow
	NTP and SNTP
	FTP and TFTP
	SNMP v1/v2/v3
	RMON (1, 2, 3, 9)
	NETCONF
	CWMP (TR-069)
	gRPC
PoE	IEEE 802.3af and 802.3at
	Warm start
	Interface priority
