Data General DG-40G-SR-MM850 is a 40G QSFP+ BiDi multi-mode fiber transceiver for short-range 40 Gigabit Ethernet links. Supports up to 150 m over OM4 MMF using duplex LC connectors, compliant with IEEE 802.3ba.

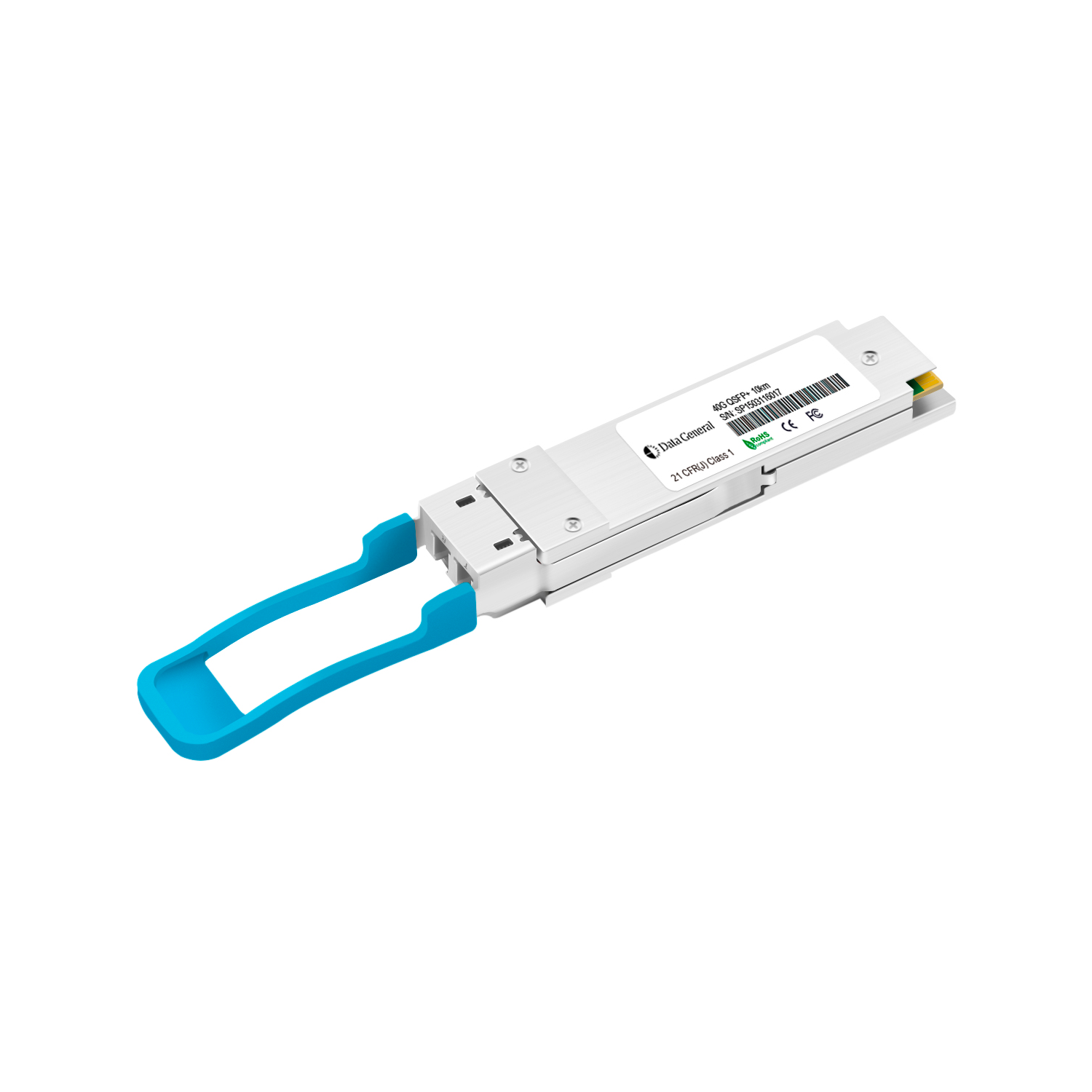

The DG-40G-SR-MM850 is a high-performance 40 Gbps QSFP+ optical transceiver designed for short-range multi-mode fiber applications in data centers and enterprise networks. It uses bi-directional (BiDi) transmission over a standard LC duplex connector, operating at 850 nm and 900 nm wavelengths, allowing the reuse of existing LC duplex MMF cabling infrastructure.
The module integrates four electrical lanes at 10.3125 Gbps compliant with the 40GE XLPPI interface, internally multiplexed into two 20 Gbps optical channels transmitted and received bidirectionally over multimode fiber. It supports transmission distances of up to 100 m over OM3 MMF and 150 m over OM4 MMF.
Compliant with IEEE 802.3ba, QSFP+ MSA, and SFF-8436, the DG-40G-SR-MM850 ensures broad interoperability with 40G-capable switches, routers, and aggregation platforms. With its hot-pluggable QSFP+ form factor, robust EMI shielding, and commercial temperature range, it is an efficient and cost-effective solution for high-density 40G Ethernet deployments.
• Aggregate data rate of 40 Gbps.
• BiDi transmission over duplex LC multimode fiber.
• Wavelengths: 850 nm / 900 nm.
• Transmission distance up to 150 m on OM4 / 100 m on OM3.
• QSFP+ form factor, hot-pluggable.
• Compliant with IEEE 802.3ba (40GbE XLPPI).
• QSFP+ MSA and SFF-8436 compliant.
• Operates at 10.3125 Gbps per electrical lane.
• Reuses existing LC duplex MMF infrastructure.
• Single 3.3 V power supply.
• Power consumption up to 3.5 W.
• All-metal housing for enhanced EMI performance.
• RoHS compliant.
• Class 1 laser safety compliant.
Optical Characteristics
• Optical wavelengths: 850 nm (TX/RX) and 900 nm (TX/RX)
• Average optical power per channel: –4 to +5.0 dBm
• Receiver sensitivity (per channel): –11 dBm
• Maximum receiver input power: +0.5 dBm
• Optical extinction ratio: ≥ 3.5 dB
Fiber & Distance
• Fiber type: Multi-Mode Fiber (MMF)
• Maximum distance:
100 m on OM3 MMF
150 m on OM4 MMF
Electrical & Interface
• Aggregate data rate: 40 Gbps
• Data rate per lane: 10.3125 Gbps
• Connector: LC duplex
• Interface: QSFP+
• Power supply: 3.3 V
• Power consumption: ≤ 3.5 W
Environmental
• Operating temperature: 0 °C to +70 °C
• Storage temperature: –40 °C to +85 °C
• Operating humidity: 0% to 85% (non-condensing)
Standards & Compliance
• IEEE 802.3ba (40GbE)
• QSFP+ MSA
• SFF-8436
• RoHS
• Class 1 Laser Product
