High-density WiFi 6 access point with tri-radio design and up to 6817 Mbps throughput. Ideal for auditoriums, hotels, malls, and large venues requiring reliable, high-capacity wireless connectivity.

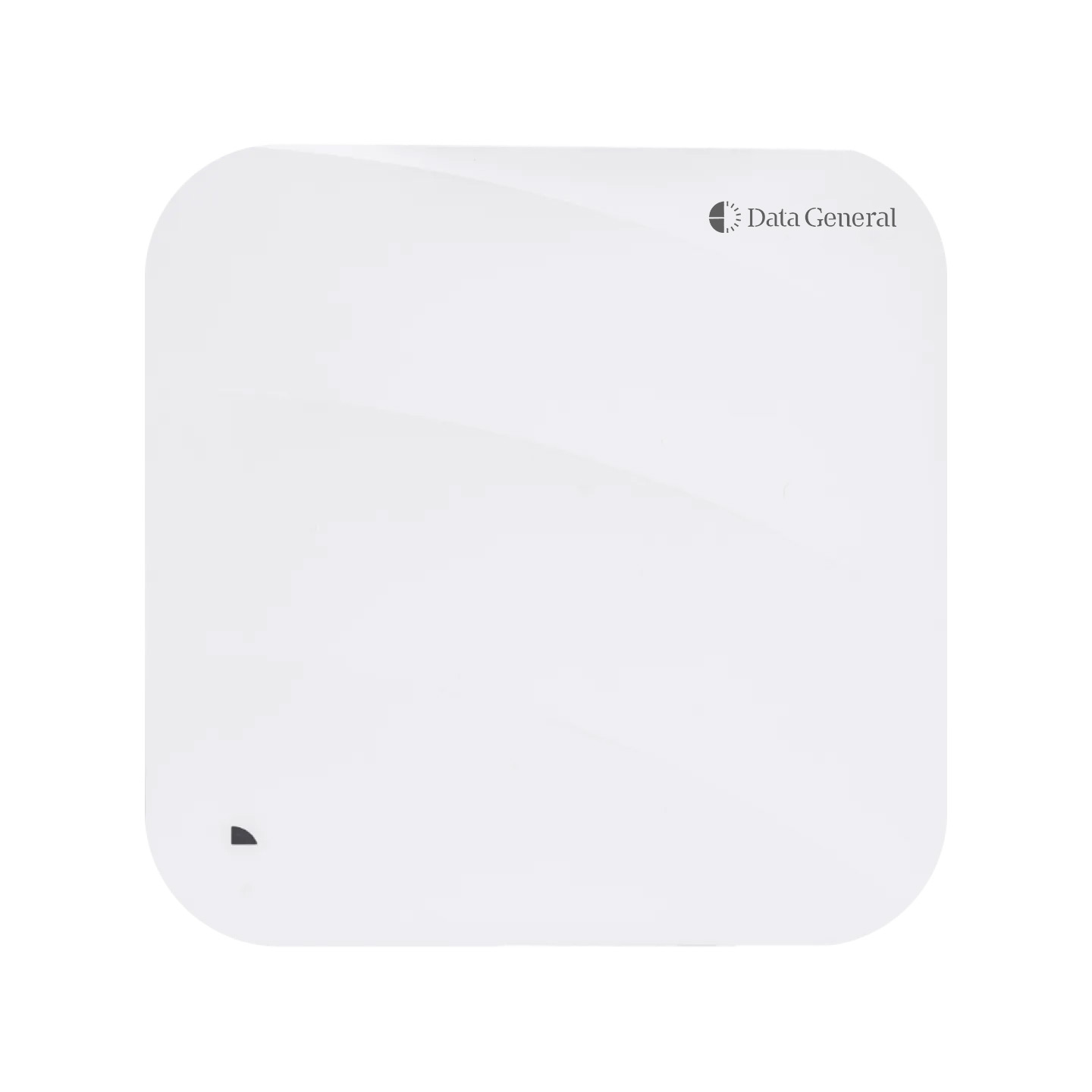

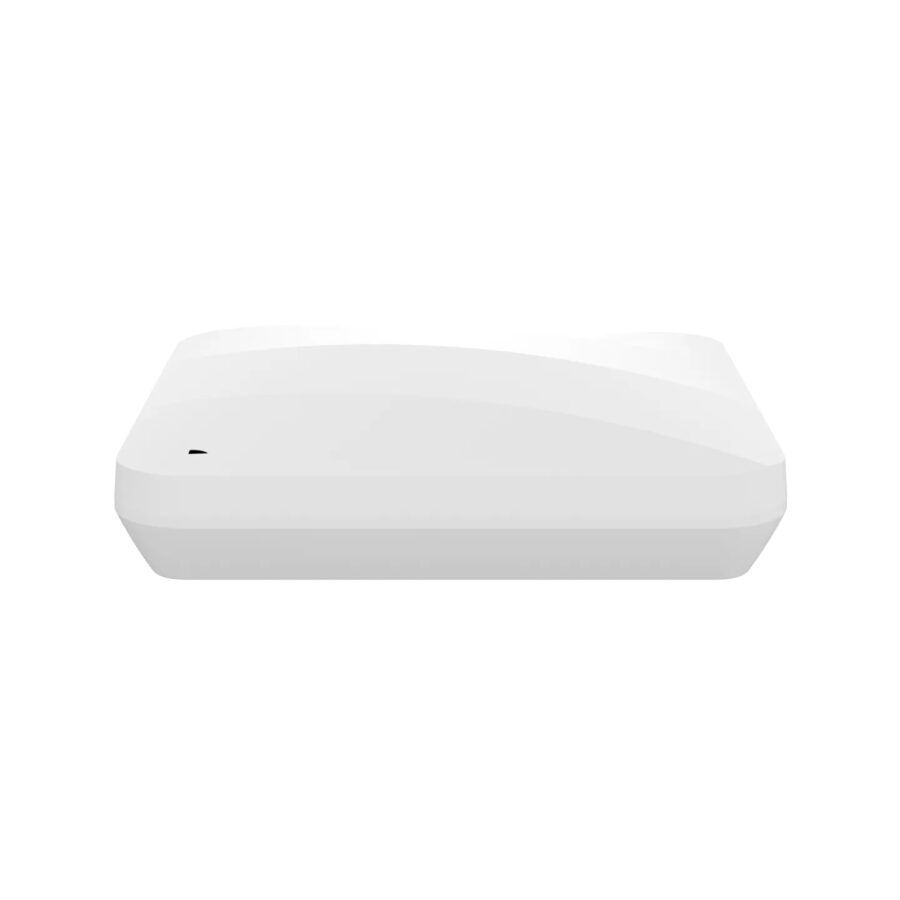

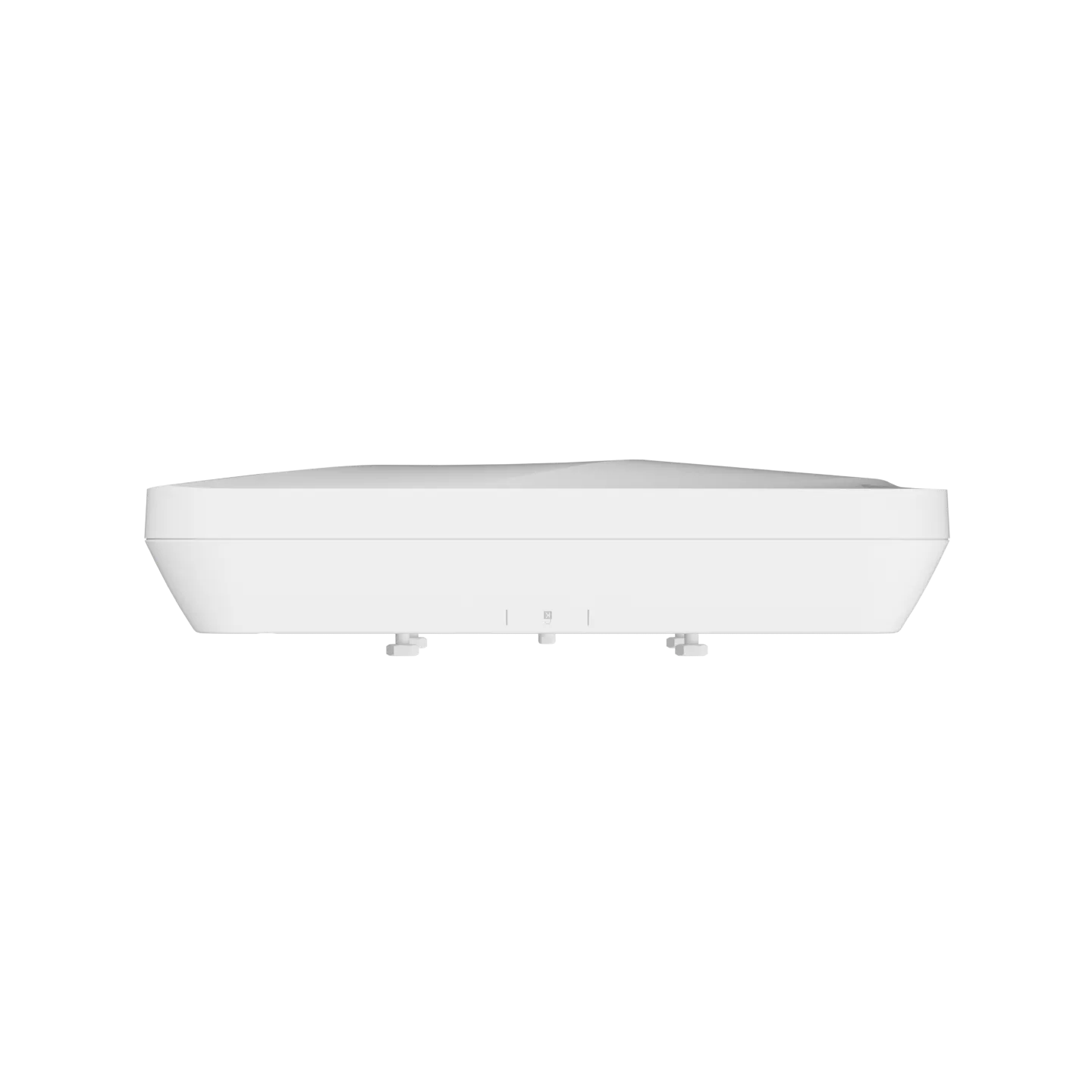

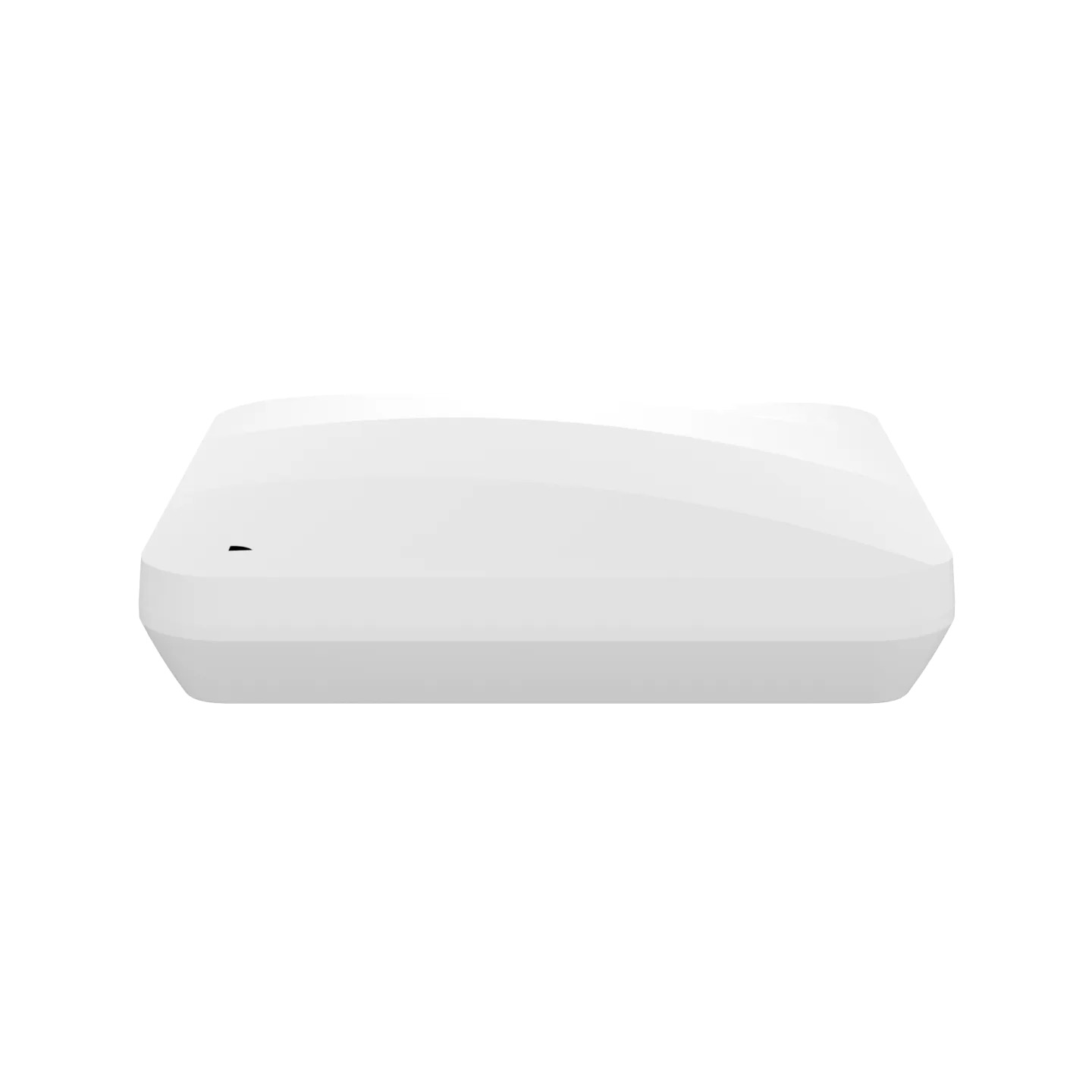

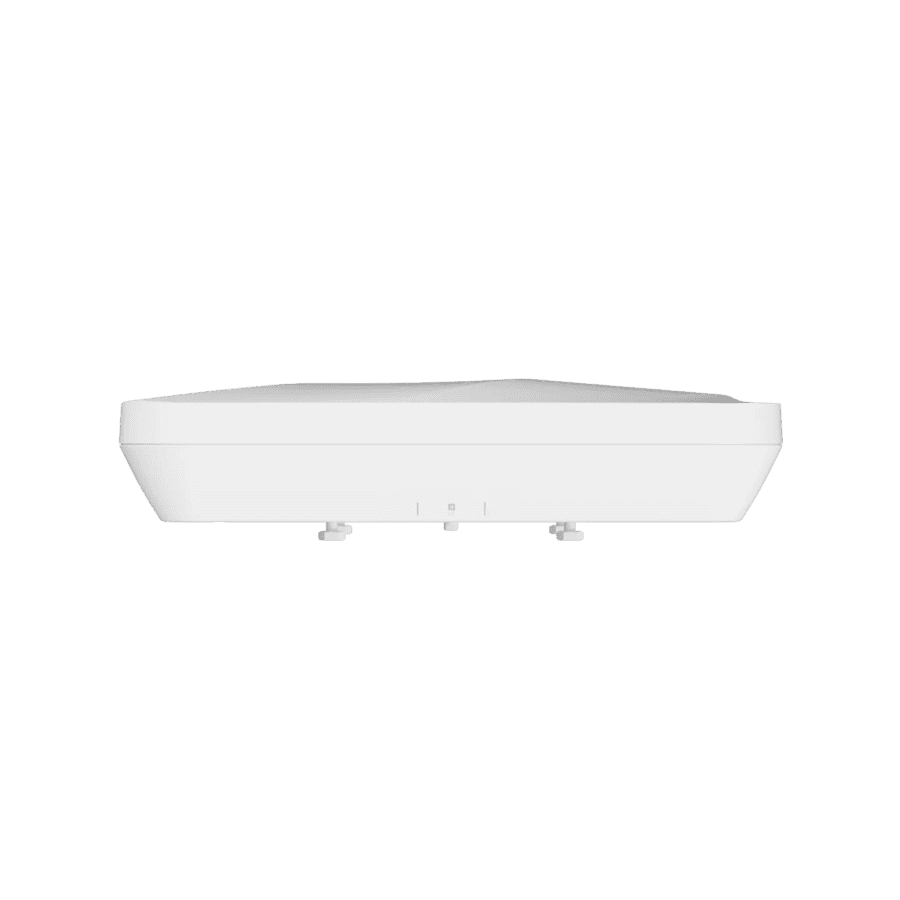

DG-AP850-AX6800 High-Density WiFi 6 Access Point – Extreme Performance for Demanding Environments
The DG-AP850-AX6800 from Data General is one of the world’s leading high-density WiFi 6 access points, engineered for environments where performance, capacity, and reliability are mission-critical. Its advanced tri-radio architecture combines a 5 GHz 802.11ax 4×4 radio, a 2.4 GHz 802.11ax 4×4 radio, and an additional 5 GHz 802.11ac 2×2 radio, delivering an outstanding aggregate wireless throughput of up to 6817 Mbps.
Purpose-built for high-user-density deployments, the DG-AP850-AX6800 excels in locations such as auditoriums, conference and event centers, shopping malls, large hotels, and public venues, where hundreds of simultaneous connections must be handled efficiently. WiFi 6 technology ensures higher capacity, improved spectrum efficiency, reduced latency, and consistent performance even under heavy network load.
Thanks to its robust design and proven real-world results, the DG-AP850-AX6800 is a trusted choice for installers, system integrators, and IT professionals seeking a reliable, enterprise-grade access point capable of delivering guaranteed success in the most demanding wireless environments.
Hardware Specifications |
|
|---|---|
Dimensions and Weight |
DG-AP850-AX6800 |
| Physical dimensions (W x D x H) | 220 mm x 220 mm x 48.85 mm (8.66 in. x 8.66 in. x 1.92 in.) |
| Weight | AP: 1.3 kg (2.87 lbs) |
| Mounting bracket: 0.2 kg (0.44 lbs) | |

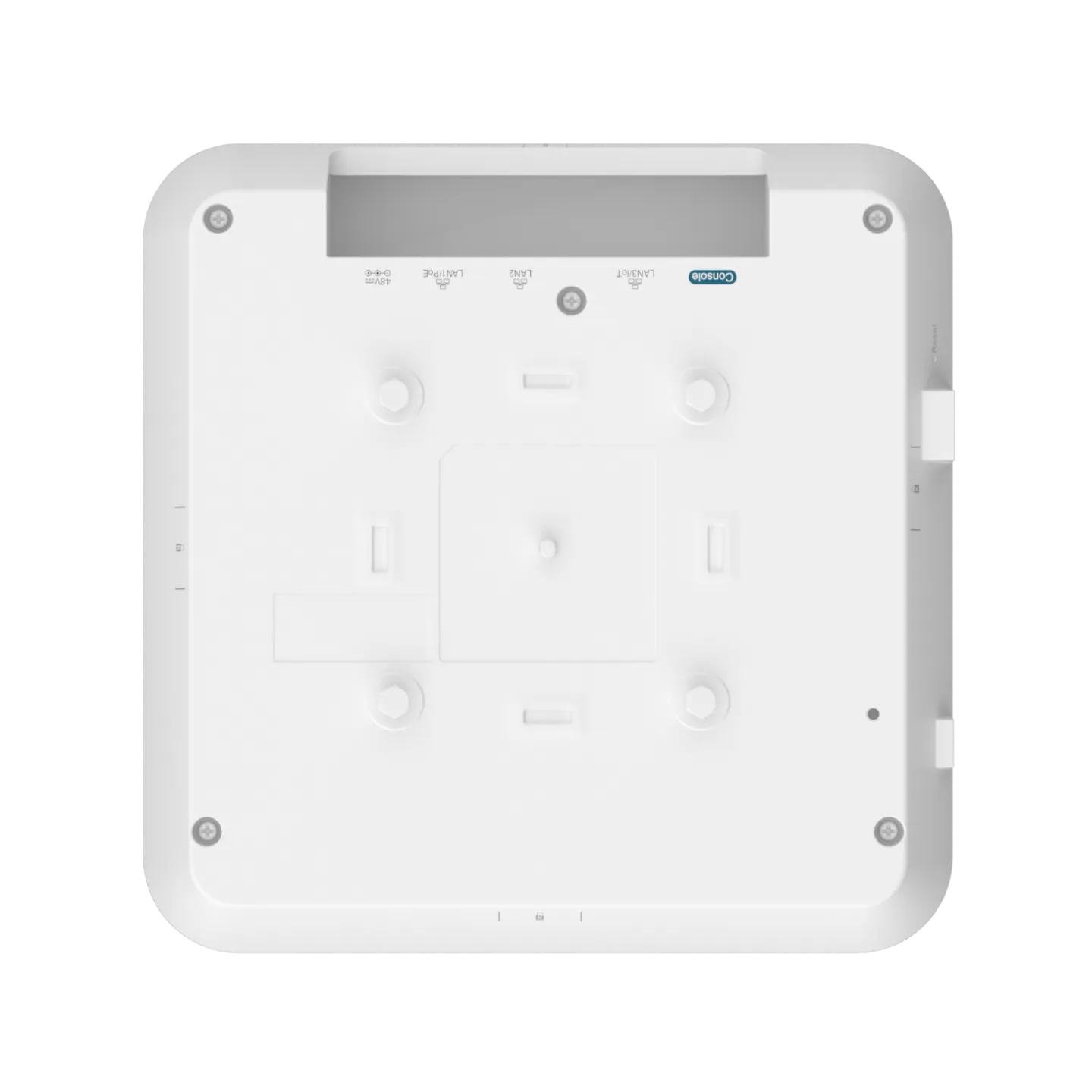

| Installation | Ceiling-mounting or wall-mounting |
| Lock option | Securing latch and Kensington lock |
Radio Specifications |
DG-AP850-AX6800 |
| Radio design | Tri-radio design, ten spatial streams |
| Radio1: 2.4 GHz, four spatial streams: 4×4 MU-MIMO | |
| Radio2: 5 GHz, two spatial streams: 2×2 MIMO | |
| Radio3: 5 GHz, four spatial streams: 4×4 MU-MIMO | |
| Operating frequencies | Radio1: 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz |
| Radio2: 802.11a/n/ac: 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz | |
| Radio3: 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz | |
| Note: The operating radio is country-specific. | |
| Data rate | Radio 1: 2.4 GHz, 1.15 Gbps |
| Radio 2: 5 GHz, 867 Mbps | |
| Radio 3: 5 GHz, 4.8 Gbps | |
| Combined: | |
| 2.4 GHz + 5 GHz + 5 GHz, 6.817 Gbps | |
| Antenna type | Built-in smart antennas |
| Antenna gain | 2.4GHz: 3 dBi |
| 5GHz: 3 dBi | |
| Max. transmit power | 20 dBm |
| Note: The transmit power varies based on the regulations in different countries and regions. | |
| Power adjustment | 1 dBm |
| Modulation | OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps |
| DSSS: DBPSK @ 1 Mbps, DQPSK @ 2Mbps, and CCK @ 5.5/11 Mbps | |
| MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM | |
| OFDMA | |
| Receive sensitivity | 802.11b: –96 dBm (1 Mbps), –93 dBm (5 Mbps), and –89 dBm (11 Mbps) |
| 802.11a/g: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –80 dBm (36 Mbps), and –74 dBm (54 Mbps) | |
802.11n: – 90 dBm @ MCS0, – 70 dBm @ MCS7, – 89 dBm @ MCS8, – 68 dBm @ MCS15 |
|
| 802.11ac: HT20: –88 dBm (MCS0) and –63 dBm (MCS9) | |
| 802.11ac: HT40: –85 dBm (MCS0) and –60 dBm (MCS9) | |
| 802.11ac: HT80: –82 dBm (MCS0) and –57 dBm (MCS9) | |
| 802.11ac: HT160: –80 dBm (MCS0) and –55 dBm (MCS9) | |
| 802.11ax: HE80: –82 dBm (MCS0), –57 dBm (MCS9), and –52 dBm (MCS11) | |
| 802.11ax: HE160: –80 dBm (MCS0), –49 dBm (MCS11) | |

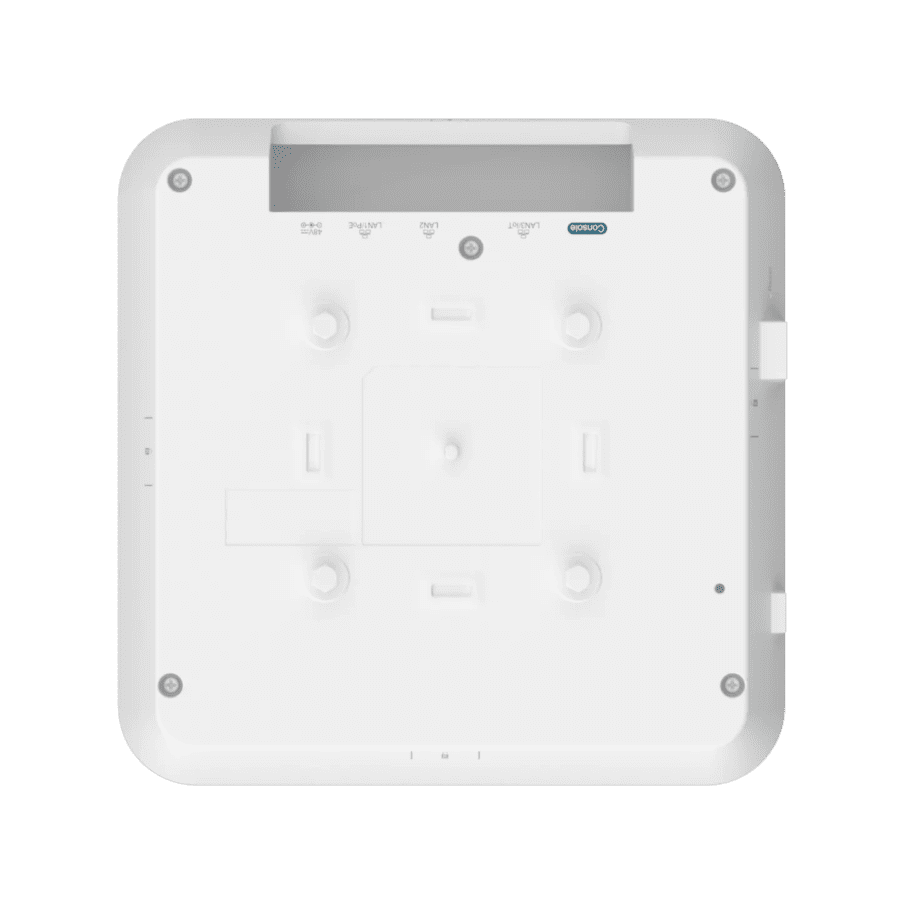

Port Specifications |
DG-AP850-AX6800 |
| Bluetooth | Bluetooth 5.0 |

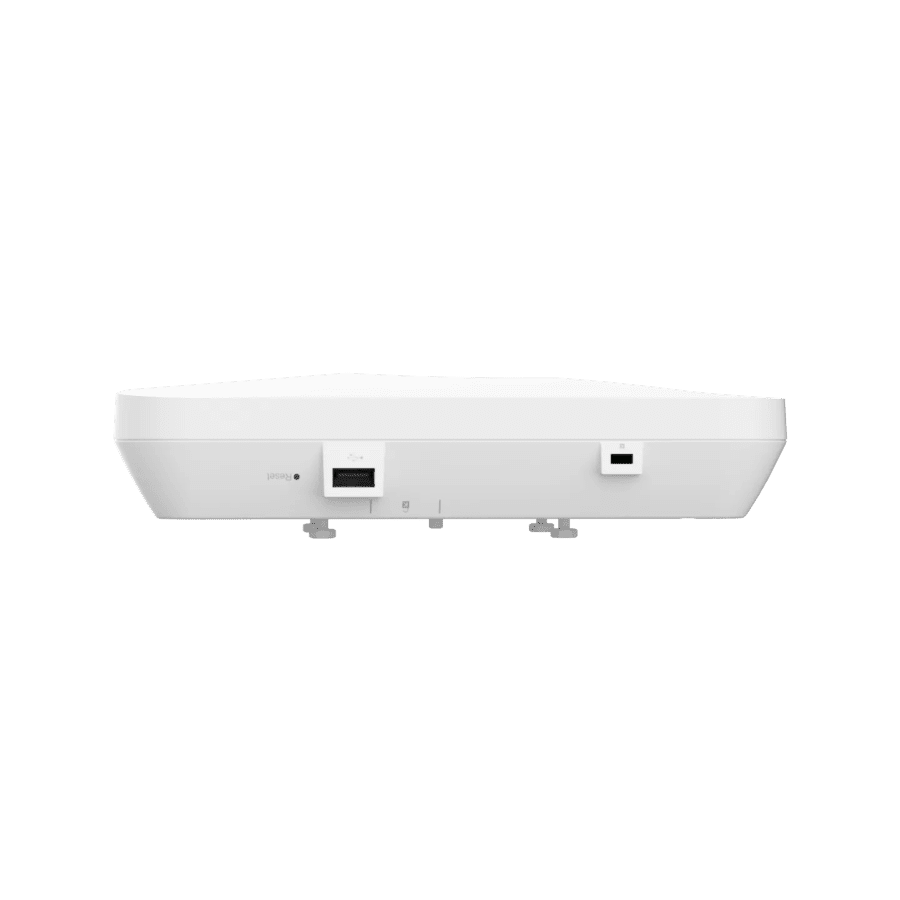

| USB port | USB 2.0 |

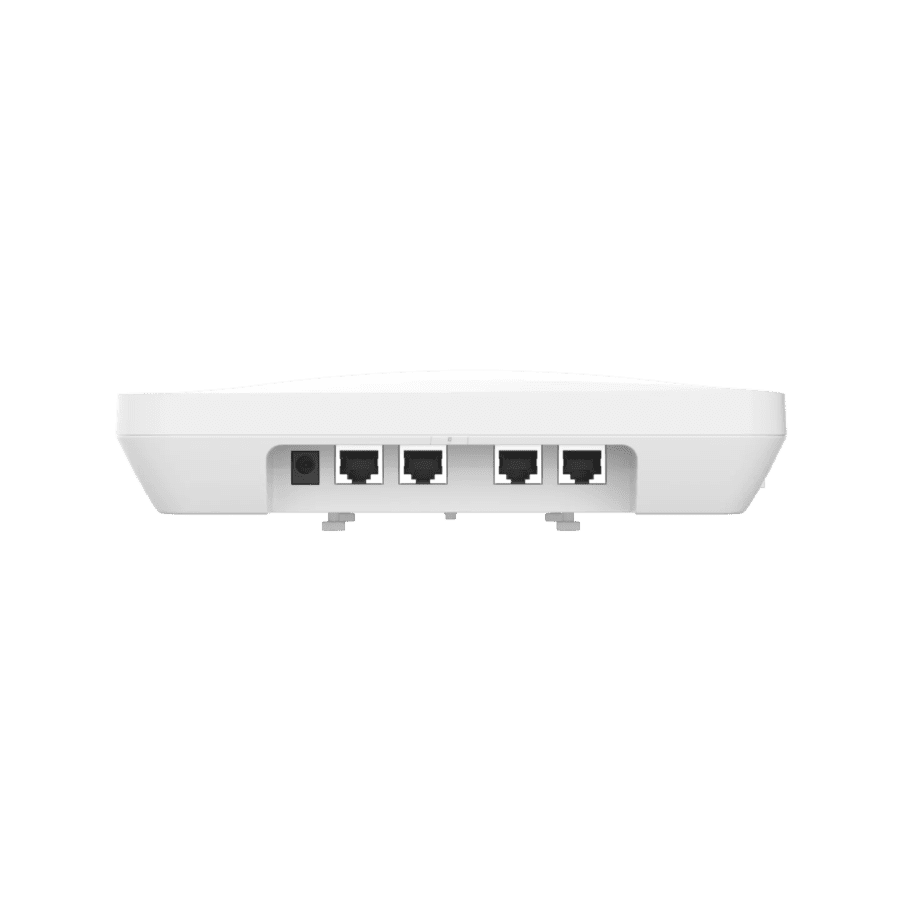

| Fixed service port | Uplink: |
| Two 10/100/1000Base-T Ethernet ports with auto-negotiation, supporting link aggregation. The first port can by powered by PDs. | |
| Downlink: | |
| One 10/100/1000Base-T Ethernet port with auto-negotiation, supporting power feeding (12 V/2 W) to external devices by PSE, connected to external devices by Data General IoT modules | |
| Fixed management port | One RJ45 console port |
| Status LED | One system status LED |
| Button | One Reset button |
Power Supply and Consumption |
|
Power Supply and Consumption |
DG-AP850-AX6800 |
| Input power supply | (1) 48 V DC/0.6 A power supply |
| (2) PoE/PoE+ power supply, IEEE 802.3af/at-compliant | |
| Note: When the AP is powered by IEEE 802.3af-compliant PoE power supply, only Radio1 works, and PSE power supply to external devices and USB functions are disabled). | |
| External power supply | Supported by PSE (12 V/2 W) |
| Max. power consumption | 25.5 W |
Environment and Reliability |
DG-AP850-AX6800 |
| Temperature | Operating temperature: –10°C to +50°C (14°F to 122°F) |
| Storage temperature: –40°C to +70°C (–40°F to +158°F) | |
| Note: At an altitude between 3000 m (9842.52 ft) and 5000 m (16404.2 ft), every time the altitude increases by 220 m (721.79 ft), the maximum temperature decreases by 1°C (1.8°F). | |
| Humidity | Operating humidity: 5% to 95% RH (non-condensing) |
| Storage humidity: 5% to 95% RH (non-condensing) | |
| IP rating | IP51 |
| Safety standard | GB 4943.1, IEC 60950-1, IEC 60825-1 |
| EMC standard | EN 300386, GB/T 19286, GB/T 17618 |
Software Specifications |
|
| WLAN Function | DG-AP850-AX6800 |
| Maximum number of allowed STAs | 1536 |
| Virtual AP service | A maximum of 48 virtual AP services can be provided for the whole machine, and a maximum of 16 ones can be provided for a single RF. |
| SSID hiding | Supported |
| Each SSID can be configured with an independent authentication mode, encryption mechanism, and VLAN attributes. | Supported |
| Remote Intelligent Perceptive Technology (RIPT) | Supported |
| Terminal intelligent identification technology | Supported |
| Intelligent load balancing based on the number of terminals or traffic | Supported |
| STA limit | SSID-based STA limit is supported. |
| Radio-based STA limit is supported. | |
| Bandwidth limit | STA/SSID/AP-based speed limit is supported. |
Security Function |
DG-AP850-AX6800 |
| Registration modes such as PSK and Web | Supported |
| Data encryption | WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3, and WEP (64/128 bits) are supported. |
| WeChat registration | Supported |
| QR code visitor registration | Supported |
| SMS registration | Supported |
| Non-perception registration | Supported |
| Data frame filtering | The whitelist, static blacklist, and dynamic whitelist are supported. |
| User quarantine | Supported |
| Rogue AP detection and countermeasures | Supported |
| Dynamic ACL delivery | Supported |
| RADIUS protocol | Supported |
| CPU Protection Policy (CPP) | Supported |
| Network Foundation Protection Policy (NFPP) | Supported |
Routing and Switching Function |
DG-AP850-AX6800 |
| IPv4 address | The static IP address or DHCP can be obtained. |
| Multicast | Multicast conversion to unicast is supported. |
| PPPoE | The PPPoE client is supported. |
| VPN | The IPsec VPN is supported. |
| NAT | Supported (including FTP ALG/DNS ALG) |
Management and Maintenance |
DG-AP850-AX6800 |
| Network management | Networks can be managed using Telnet and TFTP. |
| Web management is supported. | |
| Wireless positioning | RBIS is supported. |
| Wireless marketing | WMC/MCP is supported. |
| Fault detection and alarming | Supported |
| Information statistics collection and logs | Supported |
| Fat/Fit mode switching | The Fit mode can be switched to the Fat mode by using the AC series wireless controller. |
| The Fat mode can be switched to the Fit mode by using the local control port and Telnet. |
