1G copper SFP transceiver for Gigabit Ethernet over Cat 5e/6 twisted-pair cabling. Supports up to 100 m reach with full compliance to IEEE 802.3ab and SFP MSA.

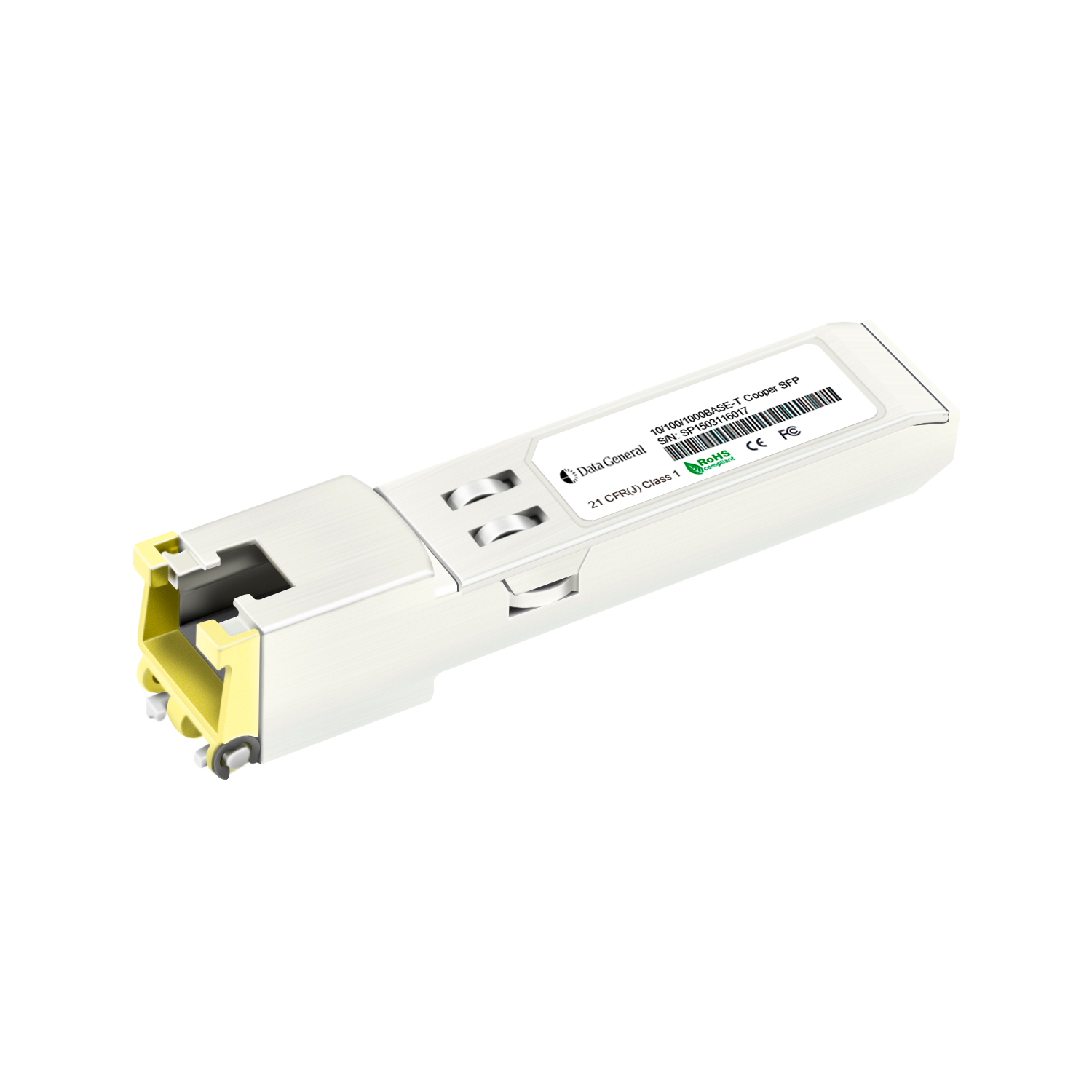

The DG-1G-RJ45 is a high-performance Copper SFP transceiver designed to deliver reliable Gigabit Ethernet connectivity over standard twisted-pair copper cabling. Fully compliant with IEEE 802.3ab (1000BASE-T), the module supports data rates up to 1 Gbps with a maximum transmission distance of 100 meters over Cat 5e or higher UTP cables.
The transceiver uses 5-level Pulse Amplitude Modulation (PAM-5) and operates in full-duplex mode, utilizing all four pairs of the copper cable to ensure stable and efficient data transmission. It features a compact integrated RJ45 connector, enabling seamless migration from fiber to copper without changing network equipment.
Compliant with the SFP Multi-Source Agreement (MSA), the DG-1G-RJ45 is hot-pluggable and supports 2-wire serial interface access for identification and physical layer management. Its fully metallic enclosure provides enhanced EMI shielding, while its low power consumption makes it suitable for dense switch environments.
This module is ideal for switch-to-switch, router-to-server, and enterprise access network connections where copper cabling is preferred or already deployed.
• Data rate up to 1 Gbps.
• 1000BASE-T compliant over Cat 5e / Cat 6 UTP.
• Maximum distance: 100 m.
• Integrated RJ45 connector.
• Hot-pluggable SFP form factor.
• Supports 10/100/1000 Mbps (SGMII hosts).
• Low power consumption (1.05 W typical).
• Fully metallic housing for low EMI.
• Access to PHY via 2-wire serial interface.
• Automatic MDI/MDI-X crossover detection.
• RoHS compliant.
• Form factor: SFP
• Interface: RJ45 (Copper Ethernet)
• Data rate: 10 / 100 / 1000 Mbps
• Duplex mode: Full duplex
• Encoding: PAM-5
• Cable type: Category 5e UTP or higher
• Maximum distance: 100 m
• BER: < 10⁻¹²
• Power supply: 3.3 V ±5%
• Power consumption: 1.05 W typical (1.2 W max)
• Supply current: 320 mA typical / 375 mA max
• Host interface: SERDES or SGMII
• Serial ID: SFP MSA compliant (EEPROM at A0h)
• PHY access: 2-wire serial bus (ACh)
Environmental
• Operating temperature: 0 °C to +70 °C (case)
• Storage temperature: –40 °C to +85 °C
• Operating humidity: Non-condensing
Standards & Compliance
• IEEE 802.3ab (1000BASE-T)
• IEEE 802.3
• SFP MSA
• RoHS
