10G SFP+ Active Optical Cable (AOC) with 1-meter length, designed for short-reach 10 Gigabit Ethernet connections. Ideal for in-rack and adjacent-rack connectivity with low power consumption and high reliability.

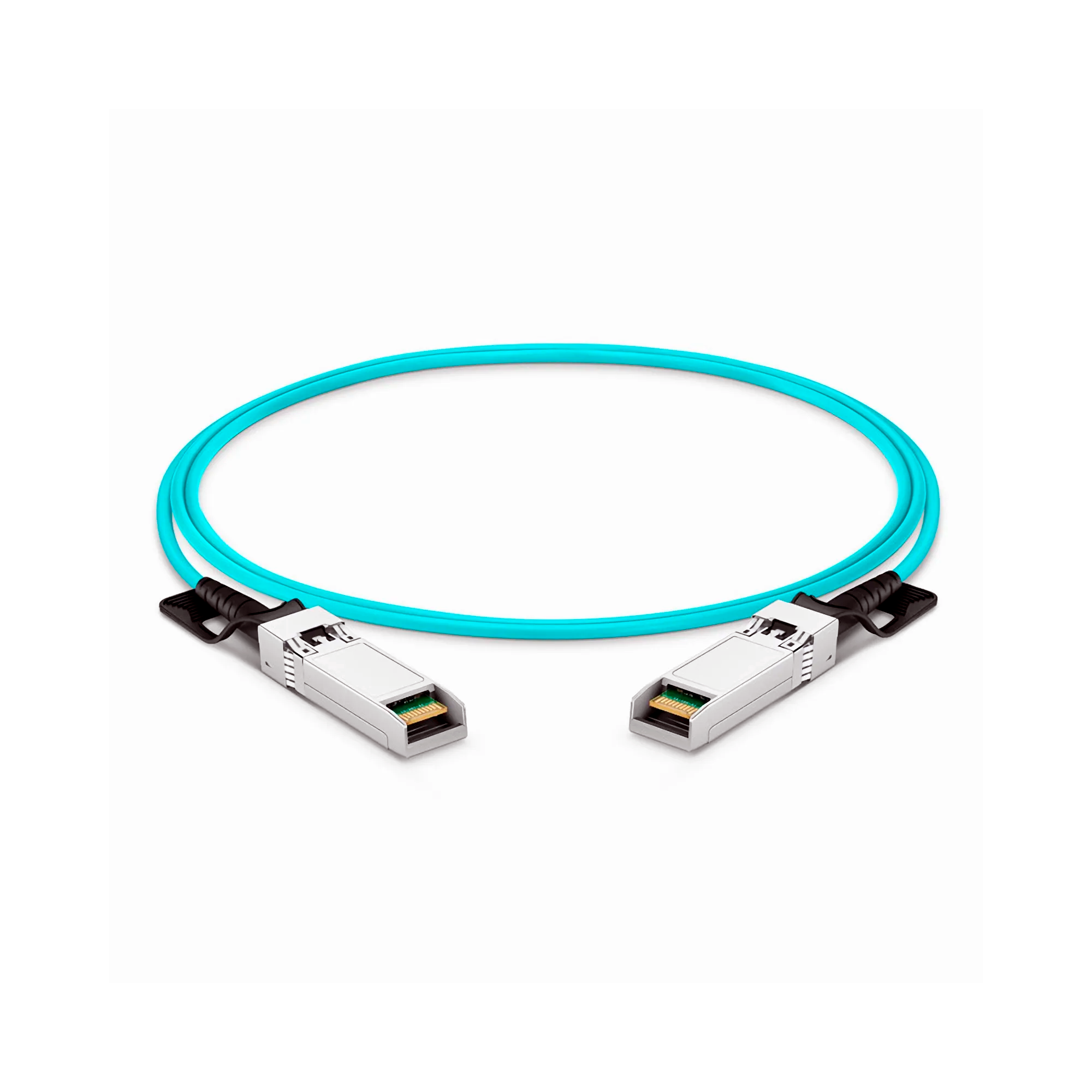

The DG-10G-AOC is a 10G SFP+ Active Optical Cable (AOC) engineered for high-speed, short-distance data transmission in data centers and enterprise network environments. It integrates SFP+ transceivers permanently attached to a multimode optical fiber cable, providing a simple, plug-and-play solution for 10 Gigabit Ethernet connectivity.
Supporting data rates from 1 Gbps up to 11.3 Gbps, this AOC is fully compatible with 10G Ethernet, 1G Ethernet, 8G / 4G / 2G / 1G Fibre Channel, and InfiniBand (SDR / DDR / QDR) applications. Its hot-pluggable SFP+ form factorensures seamless installation and flexible port usage without service interruption.
The DG-10G-AOC operates over multimode fiber (OM2 or OM3) and is optimized for in-rack and short inter-rack connections, delivering lower power consumption, reduced latency, and improved signal integrity compared to traditional copper DAC cables.
• 10G SFP+ Active Optical Cable (AOC).
• Fixed length: 1 | 3 | 5 meter.
• Data rate support from 1 Gbps to 11.3 Gbps.
• Hot-pluggable SFP+ interfaces on both ends.
• Pre-terminated optical fiber cable.
• Optimized for in-rack and adjacent-rack connections.
• Low power consumption.
• Enhanced EMI shielding with metal SFP+ housing.
• Single 3.3 V power supply.
• Programmable EEPROM for cable identification.
• RoHS compliant.
General
• Form factor: SFP+ to SFP+ AOC
• Cable length: 1 | 3 | 5 meter
• Fiber type: Multimode fiber (OM2 / OM3)
• Jacket material: PVC
• Cable diameter: 3.0 mm
Performance
• Data rate: 1 – 11.3 Gbps
• Supported protocols:
10G Ethernet
1G Ethernet
8G / 4G / 2G / 1G Fibre Channel
10G Fibre Channel over Ethernet
InfiniBand SDR / DDR / QDR
Electrical & Power
• Power supply: 3.3 V
• Low power consumption
• SFP+ Electrical Interface compliant with SFF-8431
Environmental
• Operating temperature: 0 °C to +70 °C
• Storage temperature: –40 °C to +85 °C
• Operating humidity: Up to 85% (non-condensing)
Standards & Compliance
• SFF-8431 (SFP+ Electrical MSA)
• SFF-8432 (SFP+ Mechanical MSA)
• RoHS compliant
